tensile splice

Tension joints as steel wood connection

In timber engineering the combination of components has a great influence on the load capacity and the serviceability of a construction. With this module you can design pencil-shaped metal connectors strained in shearing, such as rod dowels and fitting pins in tensile splices.

Register now! After log-in you can use module T02 for designing tensile splices for 10 days free of charge. All functions are at your disposal for this period of time. You can do static calculations, save your projects and write reports.

Module T02

With this module single tensile splices with interior or exterior pull straps made of steel sheet can be designed. Depending on the construction type you have a choice between rod dowels , fitting pins or a combination.



You can choose between:

  • interior slotted plates
  • exterior plates


  • side and center timber (tension in net section)
  • steel sheet (tension in net section)
  • load capacity of connector in steel sheet
  • block failure in steel sheet
  • load capacity of connector in wood component
  • pull-out strength of connectors
  • bloom shears in wood component

Tensile splices as a steel-to-wood connection

Range of application

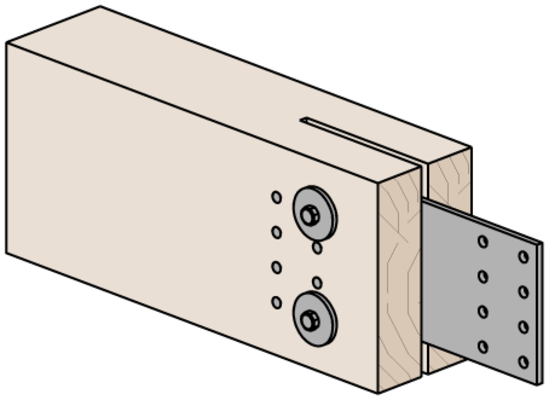

inside metal sheet
example printout with inside metal sheet
inside metal sheet
example printout with inside metal sheet
inside metal sheet
example printout with inside metal sheet
inside metal sheet
example printout with inside metal sheet
exterior plates
example printout with exterior plates

Design criteria and optimizing

The design of timber construction parts and connectors is regulated by DIN EN 1995-1-1:2010-12 and the design of steel sheets is regulated by DIN EN 1993-1-1:2010-12 and DIN EN 1993-1-8:2010-12 in connection with National Application Documents.

To minimize the required input parameters, a connection optimization is available. It is only necessary to enter the connection type, the cross-sectional dimensions and the load. The choice of steel sheet thickness, the number and diameter of the connecting means as well as the distances between them and the edge are automatically calculated by the program and can be adjusted manually as required.

Prices per month (plus VAT)

free of charge

0 €
per month

unlimited testing

You can test our module T02 free of charge and without any obligation.

3 months

15 €
per month

project-based rental

To make you perfectly equipped even for non-routine tasks we allow you to rent our modules for a short period of time.

12 months

8 €
per month

permanently available

The ideal package for your daily work. Our package with a term of 12 months enables flexible work at a low price.
